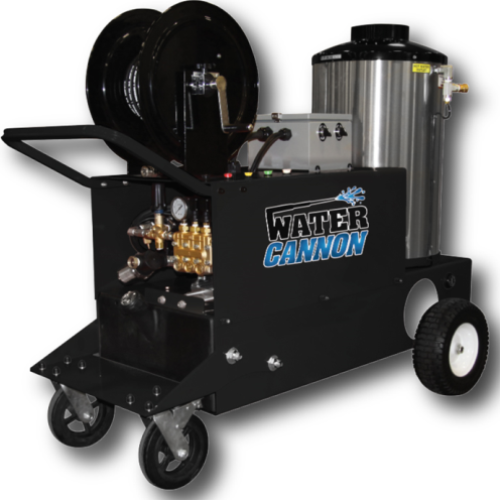

Industrial Hot Water Electric 4GPM 4000PSI 10HP

Our industtlal hot water series offers the most diverse range of performance specifications available. Low speed pumps and motors ensure reliable and continuous service while offering minimal downtime. Featuring pressures up to 8,000 PSI and up to 12.0 GPM in water now. Units can be factory outfitted with optional auto start and stop with time delay, hose reel, wheel kits and more. Call our industry expert customer service teqm to learn more.

Pump

• Industrial Duty Triplex Plunger Pumps
• Oil Bath Crankcase
• Stainless Valves
• Brass Manifold
• Thermo Pump Protector

Electric Motor

• 17S0 RPM
• TEFC
• Full Frame
• 1.15 Service Factor
• Thermal Overload Protection
• Continuous Duty
• 3 Phase (High Efficiency)

Electrical Control Panel

• Nema 4
• Water Tight
• Easy Access
• Heavy Duty On/Off Cam Switch Or Optional Auto Stop/Start With Time Delay

Heating Coil

• Schedule 80 & 160 Pipe
• Elliptically Wound &.Stretched
• No Seam Welds
• Structurally Braced To Reduce Vibration & Pipe Wear
• Sealed with Ceramic Blanket
• Stainless Steel Housing
• Thermostat Controlled Optional CRN/ASME 30.1 Pressure Vessel Coded Coils

Wayne Burners

• Oil Fired
• Adjustable Thermostat
• On/Off Switch
• Cleanable Fuel Filters
• North American Made
• Dependable
• Serviceable

Frame

• All Welded
• Powder Coated
• Heavy Gauge Bent One Piece Plate
• Tip Ahead Shroud With Built in Belt Guard Designed to Fully Expose All components for Ease of Maintenance
• 10 Gallon Poly Fuel Tank (15/20/50 HP Fuel Tank Optional)
• Hose Reel Compatible
• Portable Units Are Mounted On Two 13"Solid Rubber Tires And Two 8" Heavy Duty Casters (Optional)
• Stationary Units Built with Skid Style Frame

Includes

• Liquid Filled Pressure Gauge
• Adjustable Pressure Regulator
• 48" Gun And Wand Assembly with Quick Coupler System
• 0, 15, 25 and 40 Degree Nozzles
• 1 Soap Nozzle
• Chemical Injection System
• 50 Feet Of High Pressure Hose

Options & Accessories

• Hose Reel
• Wheel Kit Add (-WK)
• Remote
• VFD
• PLC
• Pressure Transducer
• Auto Stop/Start Option
• Call For Option Pricing

California Residents - Click here for Prop 65 WARNINGS

Manufacturer:	Water Cannon
SKU:	25M20
Cold or Hot Water:	Hot Water
Drive Type:	Flange/Coupling Drive
GPM:	4
PSI:	4000
Volts-Phase:	220V - 1Phase
